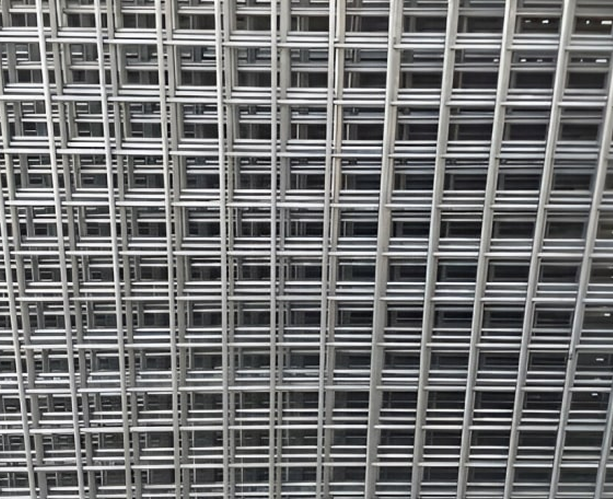

Steel matting or welded wire mesh is an electric fusion welded prefabricated joined grid that can primarily be used in precast slabs or walls, reinforcing bars, architectural use, rock retention, roads, fencing, caging, and other enclosures.
Get a Free Quote
55+ YEARS OF
NATIONWIDE
COMPLETE
SERVING LUZON, Steel matting is available in wire diameters from 4mm to 12mm with 150×150mm and 200×200mm grid spacing, in standard 2.4m×6m sheets. Mass per sheet varies by wire diameter. Download the product reference or contact our Sales Team for a quotation.
Wire diameter: 4mm to 12mm — multiple sizes for slab, wall, and structural reinforcementGrid spacing: 150×150mm and 200×200mm — standard configurationsStandard sheet size: 2.4m × 6m (approximately 14.4 m² per sheet)PNS 49:2020 / ASTM A185 / ASTM A497 — DTI BPS certified reinforcementReduces bar bending and tying labour vs conventional rebar — faster RC construction
Access wire diameter, grid spacing, mass per m², and weight per standard 2.4m×6m sheet for all steel matting configurations supplied by Regan Industrial — PNS 49:2020 and ASTM A185 compliant.
REQUEST PRODUCT BROCHURE
PDF Format
2.4 MB
Our Steel Matting Guide covers wire diameter, grid spacing, cross-sectional area per metre, mass per m², weight per sheet, and slab thickness design guidance — the essential reference for structural engineers, estimators, and procurement teams specifying welded wire mesh reinforcement for Philippine RC construction.
Wire diameter and grid spacing—4mm to 12mm wire, 150×150mm and 200×200mm gridMass per m² and weight per 2.4×6m sheet—for material takeoffs and structural designSteel matting vs conventional rebar—labour savings, placement speed, and cost comparisonPNS 49:2020, ASTM A185, and ASTM A497—certified welded wire mesh specificationsSlab thickness and design guidance—minimum and maximum wire size per slab application| Wire Dia. | Grid | Area/M (Mm²) | Mass Kg/M² |
|---|---|---|---|
| 4 mm | 150×150 | 83.8 | 0.658 |
| 5 mm | 150×150 | 130.9 | 1.028 |
| 6 mm | 150×150 | 188.5 | 2.630 |
| 8 mm | 150×150 | 335.1 | 2.630 |
| 10 mm | 150×150 | 523.6 | 4.111 |
| 12 mm | 150×150 | 753.9 | 5.918 |
Tell us what you need and we'll prepare your order with technical precision.
We confirm availability, pricing, and delivery details for maximum transparency.
Pick up at our strategic warehouse locations or we'll prepare for rapid transit.
We deliver safely and on time to your project site, no matter the scale.
Complete steel range under one roof.
Products plus value-added processing services.
We deliver across Luzon, Visayas & Mindanao.
55+ years serving the construction industry.
Quality steel at competitive prices.
Easy quotation, fast response.
Regan Industrial makes it easy to receive your steel materials anywhere in the Philippines. Choose between warehouse pickup at our Quezon City facility or door-to-door steel delivery to your construction site. Download our process guides below before placing your order.
Steel matting is commonly used in construction, infrastructure, agriculture, and industrial applications. It provides reinforcement for concrete slabs, foundations, roads, and retaining structures, while also serving as fencing, partitions, and protective enclosures in farms and facilities.
Yes. Steel matting comes in different types such as welded wire mesh, galvanized steel matting, and stainless steel matting, each designed for specific conditions.
Steel matting offers high strength, durability, and load distribution, making it effective in preventing cracks and improving structural integrity in concrete works. This also provides versatility, low maintenance, and cost efficiency, allowing it to be used across foundations, pavements, walls, and reinforcement systems in various construction projects.
Looking for a specific wire diameter, grid spacing, or quantity of welded wire mesh for RC slabs, walls, or pre-cast concrete? Our Sales Team can confirm PNS 49:2020 / ASTM A185 certified stock, current pricing, and delivery across Luzon, Visayas, and Mindanao — fast and with no runaround.
